Wash On.

A simple solution to make your
washing comfortable and fun!

Role: Research, Ideation, Concept Development,

Prototyping, Testing/Validation.

2018 I MITID, Pune

Classroom project

Duration: 4 weeks

Problem Overview

Continuous back bending
Non-ergonomic posture causing discomfort
Water spillage causes slippery bathroom floor
Clothes are washed on unhygienic surfaces
Task is tedious

In the Indian context, a lot of people still wash their clothes by hand, especially undergarments. Users include the geriatric population, hoteliers, bachelors and families. The problems faced by these people were recognised.

Analysing the Problem

1 User Group

-All age groups who prefer washing their own intimates and small clothes sometimes.

2 Water Management

-Water intake

-Soapy water

-Spilled water casing slippery floors.

3 Washing Techniques

-Traditional methods

-Modern and Innovative methods.

4

5 Space Management

-Avoiding overuse of space

-Compact and handy

Ergonomical Postures

-RULA Scores

-REBA Scores

6 Alterations

-Instead of designing a whole new product altering the existing one

-Detachable accessories

Survey Analysis

Do you wash your intimates on your own?

Male- 26.7% Female- 73.3%

Age:

15Y-25Y - 31.1%

26Y-50Y - 64.4%

50Y+ - 4.4%

Do the senior citizens in your house wash their own intimates/clothes?

Do you wash your intimates on your own?

Reasons for Inconvenience

-Absence of proper washing facility - 33.3%

-Improper postures - 44.4% --Takes a lot of time- 44.5%

Do you wash your intimates on your own?

Survey Analysis

Yes

Maybe

Do you wash your intimates on your own?

Male- 26.7% Female- 73.3%

Age:

15Y-25Y - 31.1%

26Y-50Y - 64.4%

50Y+ - 4.4%

Do you wash your intimates on your own?

Reasons for Inconvenience

-Absence of proper washing facility- 33.3%

-Improper postures - 44.4%

-Takes a lot of time- 44.5%

Do the senior citizens in your house wash their own intimates/clothes?

-Improper posture for washing - 36.2%

-Absence of proper washing equipment - 63.8% 3.

-The fixed mindset of washing their own garments - 10.5%

Reasons for Inconvenience for elderly

Do you think it important to introduce a product which makes washing intimates/small clothes easier for all?

Other specified concerns

-Need for a surface in the bathroom that has dual-use inside the bathroom.

-Incorporation of standing posture while washing clothes for comfort.

-The new idea of the product should keep in consideration the hygiene factor

Problem Statement

Inconvenience caused while washing intimates and small clothes in bathrooms due to lack of washing facilities resulting poor posture.

Design Considerations

Affordable

Portable

Ergonomic

Design Intervention

Inconvenience caused while washing intimates and small clothes in bathrooms due to lack of washing facilities resulting poor posture.

Design Considerations

Affordable

Portable

Ergonomic

Compact

User-Friendly

Hygienic

User Group

16 65+

Understanding Washing Techniques

Traditional

Advantages

-Each cloth gets washed separately.

Disadvantages

-Posture is not ergonomic.

-Takes up too much time.

-Energy wastage.

Modern and Innovative

Advantages

-Faster method to wash clothes.

-Not a lot of energy is wasted.

Disadvantages

-Product occupies a lot of bathroom space and thus is not useful for Indian bathrooms.

-Absence of introduction of such products in India.

-Clean and efficient washing of clothes is not guaranteed.

Ergonomics

Rula Score

Reba Score

5

9

5

7

3

4

3

Ideation

Rapid Prototyping

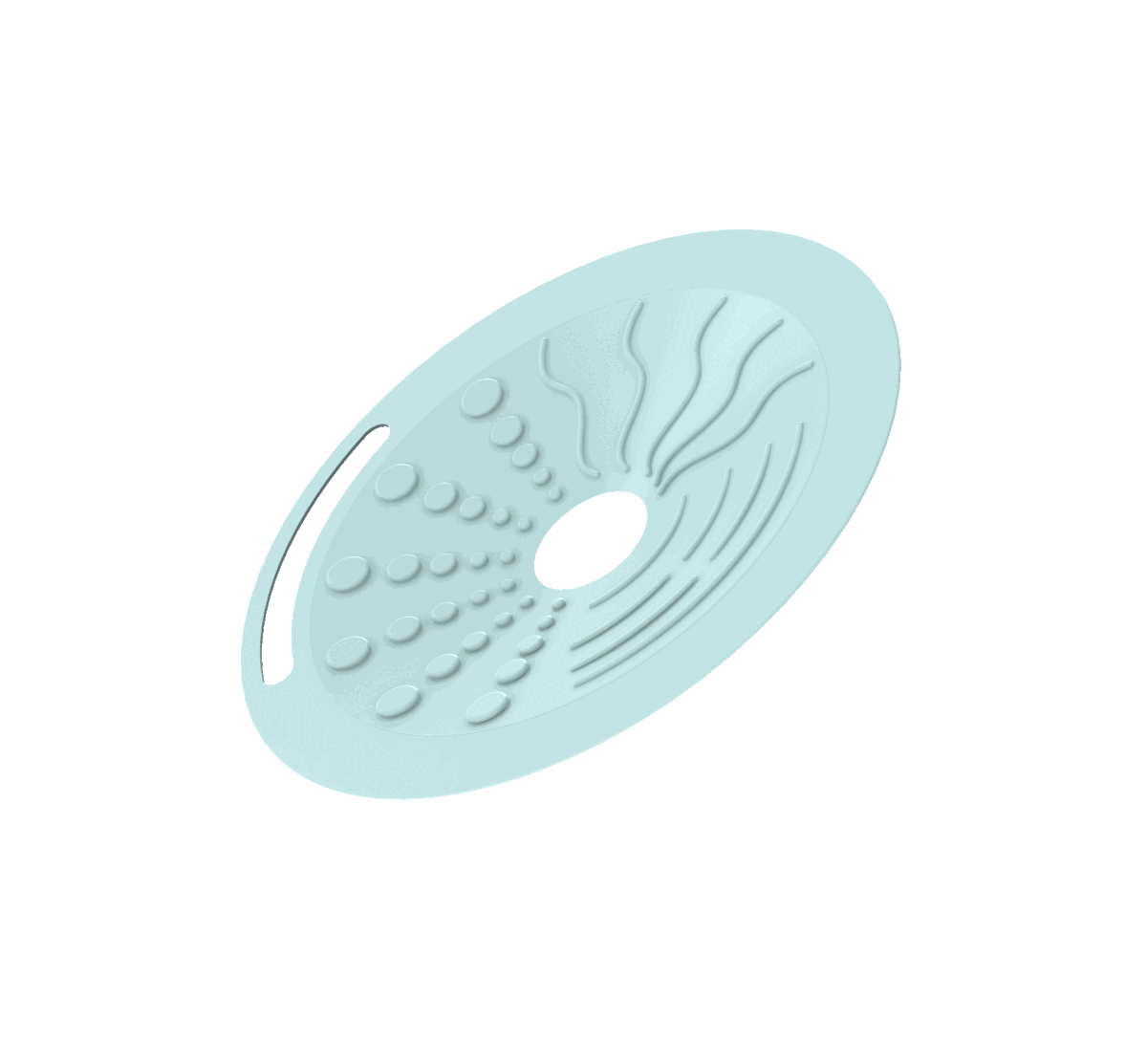

Final Concept

Wash on.

Tactile surface with varied surface texturing for efficient washing

Slight taper to allow the water flow inside the bucket

Small hole in the centre to drain the soap water into the bucket

Handle to control the position of Wash on

Features

Tapering funnel-like structure
A small hole in the centre drains all the soapy water into the bucket without causing a mess on the bathroom floor.
The product fits over almost all buckets of diameter 30cm and more.
Studs at the bottom to prevent the tray to move on the bucket while washing clothes.
Tactile surface to provide grip while washing.
The outer ring of the tray helps in holding the tray over the bucket -Easy to store and use thus making it useful for Indian bathrooms.
The posture used while using this product will be sitting on the bathroom stool.
This makes the product ergonomic as the RULA and REBA scores are 3 and 4 respectively.
Easy cleaning of the bathroom tray so that hygiene is maintained when the user changes.
